Aerosmith FCN90B-AS

Aerosmith introduced the first VersaPin® tool in 2003.  This revolutionary system changed cold-formed Steel fastening forever.  In 2009, Aerosmith introduced the ST4200 High-Speed Pneumatic Pin Nailer to the lineup.  In 2026, we launched the FCN90B-AS. Its high-powered design enables users to drive our larger diameter pins into Concrete, CMU, and Cold-formed Steel up to 12-gauge. Wherever traditional fastening (screws, nails, bolts, spot welds, etc.) is used, Aerosmith Brand Pins have demonstrated exceptional productivity leaps with SPEED being the biggest benefit.  Now you can do the same job just FASTER!

Benefits:

  • Multiple applications with one tool saves cost of extra equipment
  • Assures high-quality installations; fewer callbacks; eases code inspections; all of these cut costs
  • Less downtime re-loading; saves costs
  • High-Quality Installations; faster; saving time; improving safety
  • Use existing Equipment to save on equipment costs
  • Existing, readily available air accessories save costs
  • Sequential fire tool for safe operation with potentially lower insurance premiums
  • Applications include construction fastening, siding, roofing, framing, and trim with materials such as Hardie® Board, plywood, OSB (Oriented Strand Board) and gypsum to steel.
  • Wire and Diamond lath to steel and concrete. See below for more details.

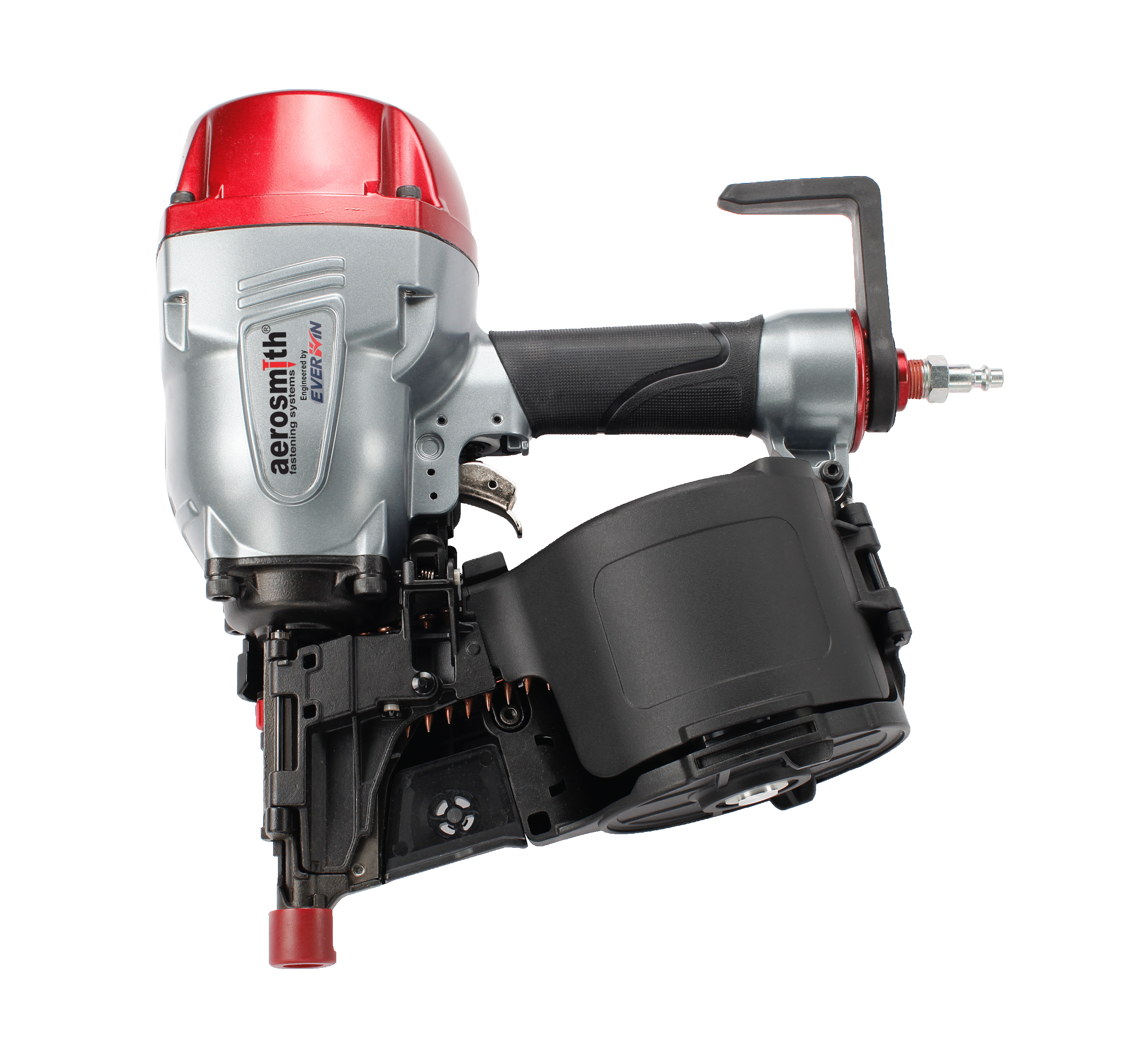

FCN90B-AS 100 PSI Coil Tool for Concrete and CFS up to 12-Gauge

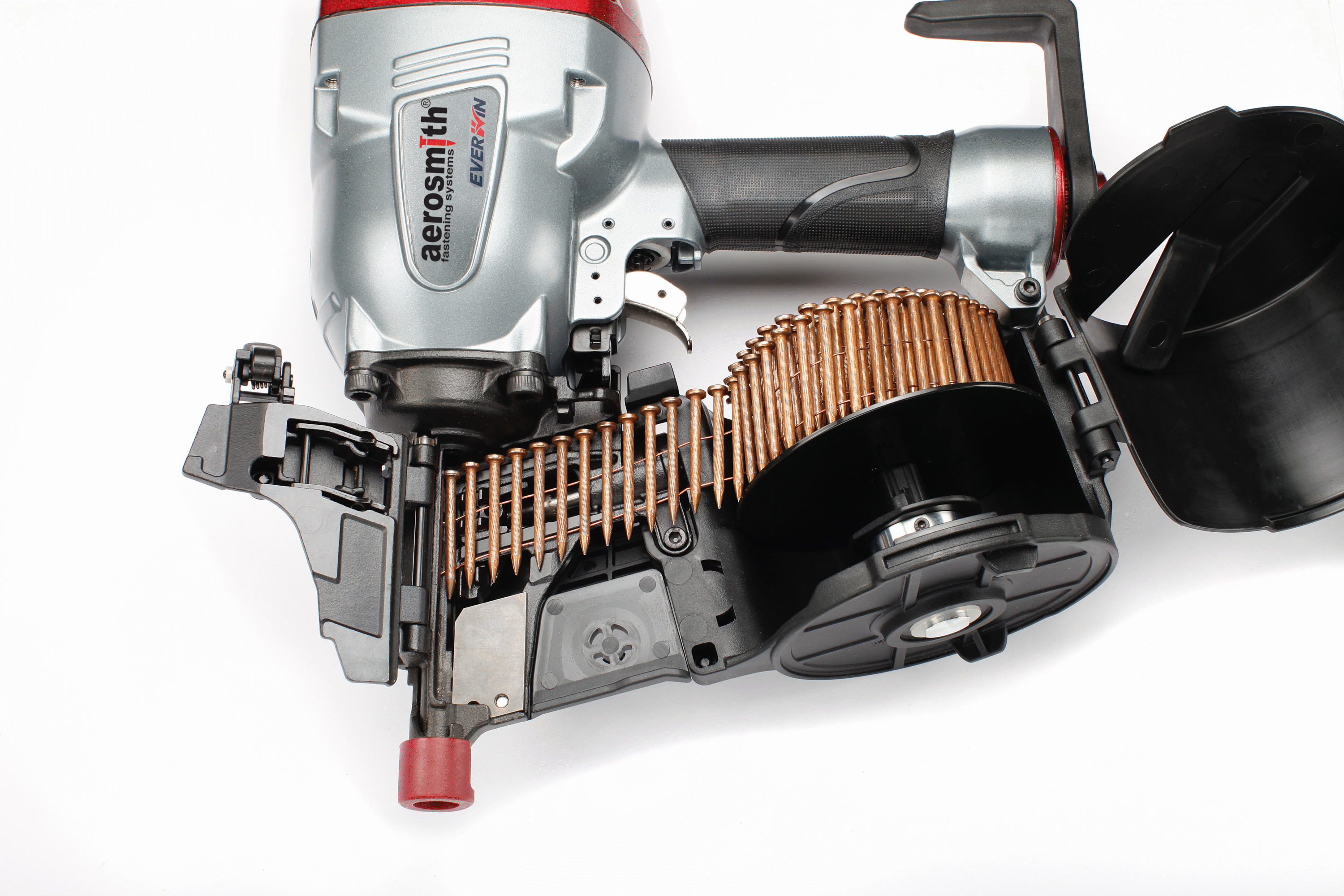

Insert 1 Doors open with label

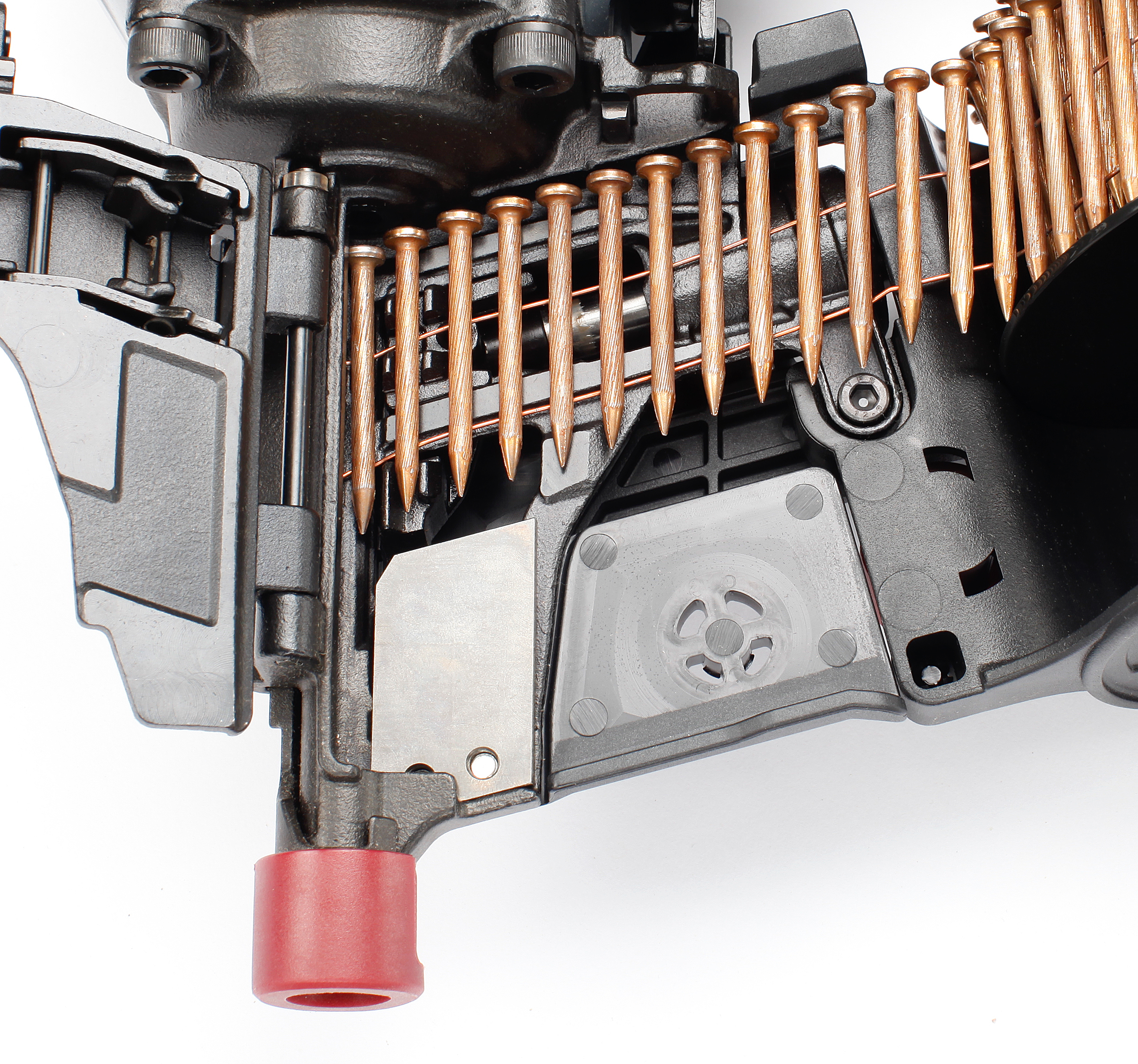

Pins and Track UNS

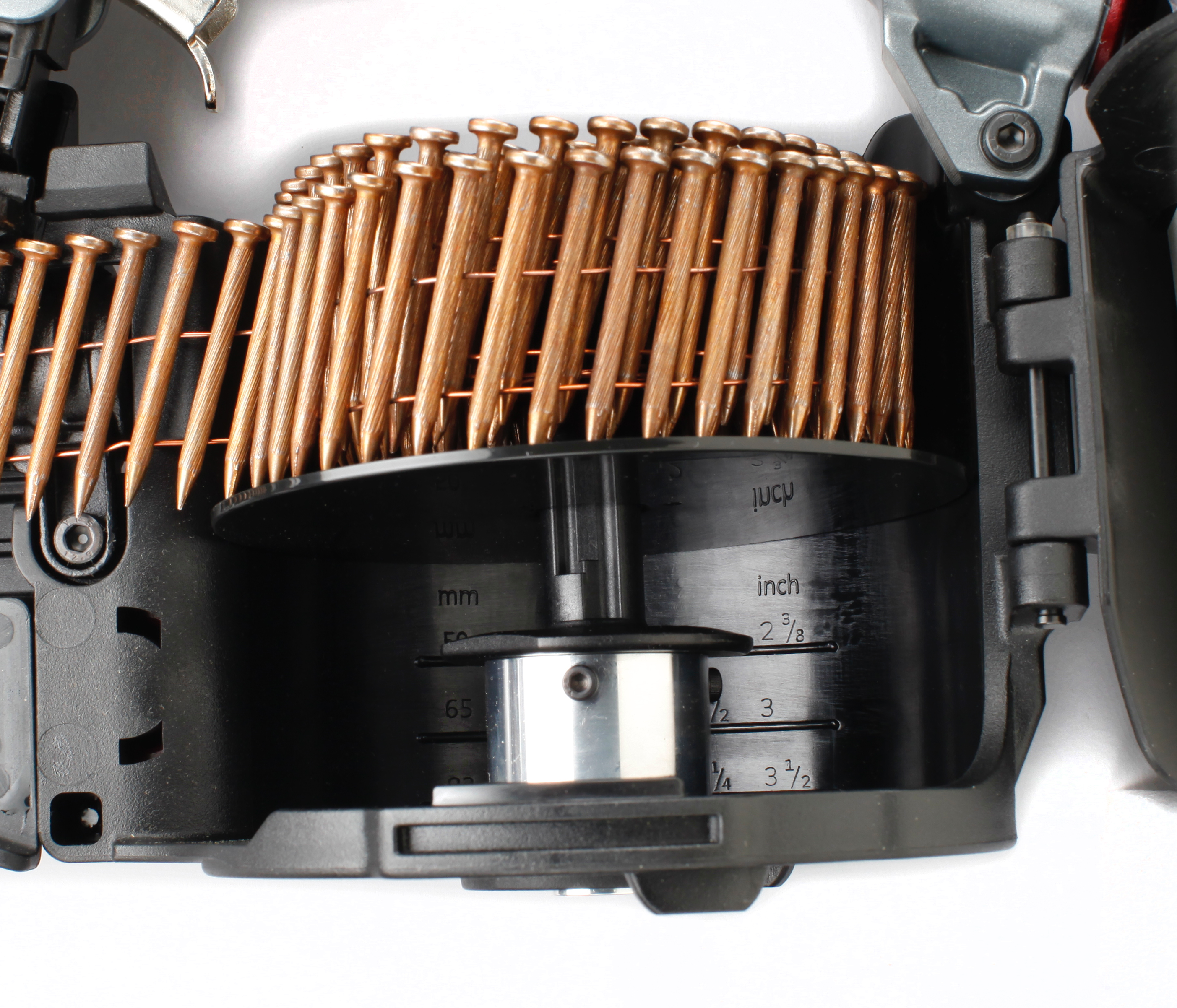

Gun Spool Detail

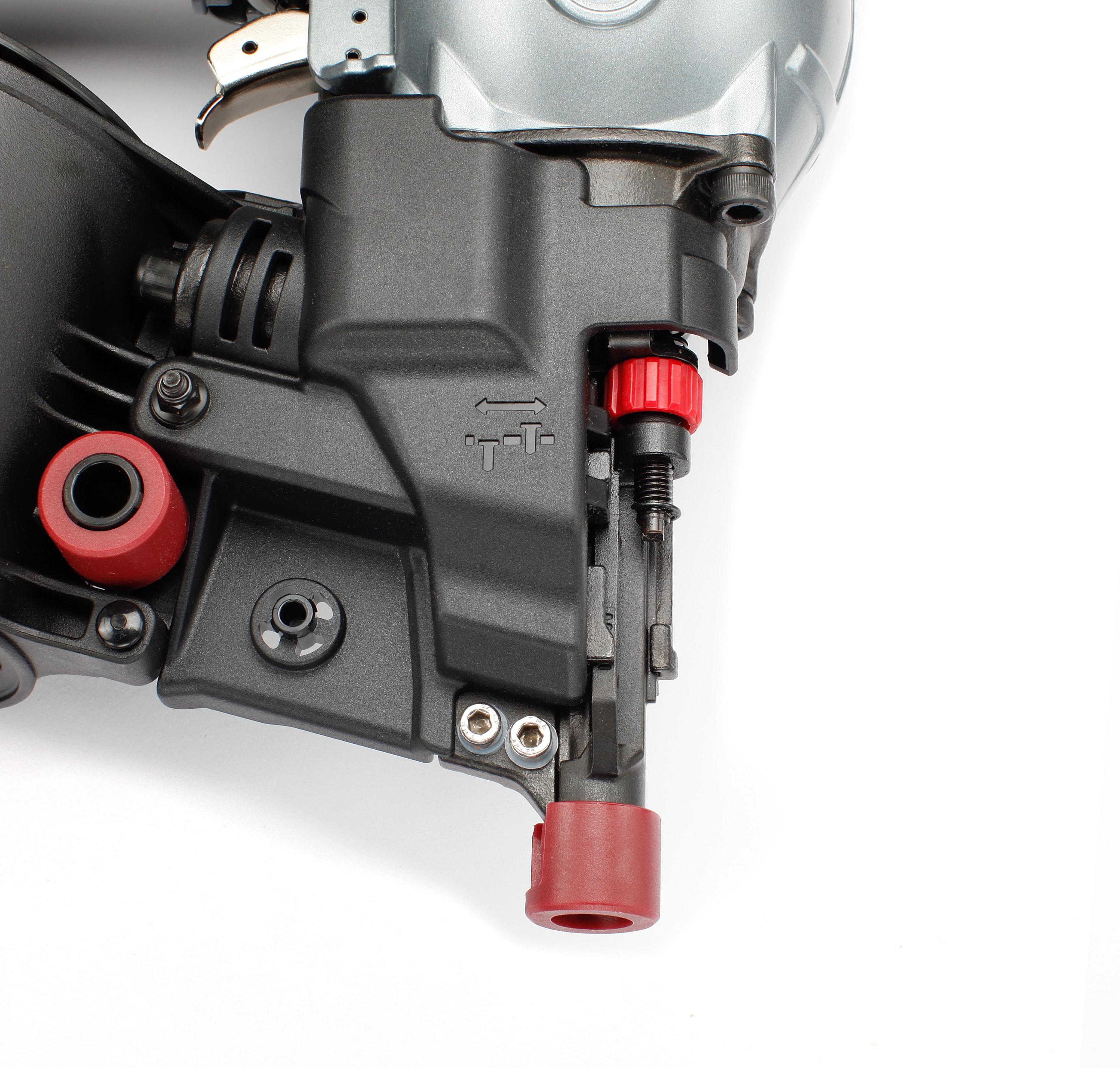

Dial Insert UNS

How it Works

Today's contractors are looking for faster, better, money saving products allowing them to be more competitive in today's challenging market place. Aerosmith's line of innovative fasteners do just that. With Aerosmith, predrilled holes and time consuming screwing are a thing of the past. All Aerosmith pins are made with heat treated steel with a ballistic point which allows the point to penetrate the steel cleanly and quickly for installations 7-10 times faster than conventional methods. The force of friction creates the bond between the steel and the fastener for maximum holding power.

  • Tool Specifications Click to Expand

    Tool Specifications


    Pin Diameter:  .145"  (3.68 mm)
    Pin Length:  1 1/4" - 1-3/4"  (32-54 mm)
    Head diameter:  .300" (8 mm)
    Operating Range:  70-120 psi (4.9 - 8.3 bar)
    Weight:  7.7 lbs (3.5 kgs)
  • Features and Benefits Click to Expand
    Depth of drive adjustment

    Pins 'flush' to surface meet/exceed Code requirements

    Belt Hook   Manage the tool in between shots
