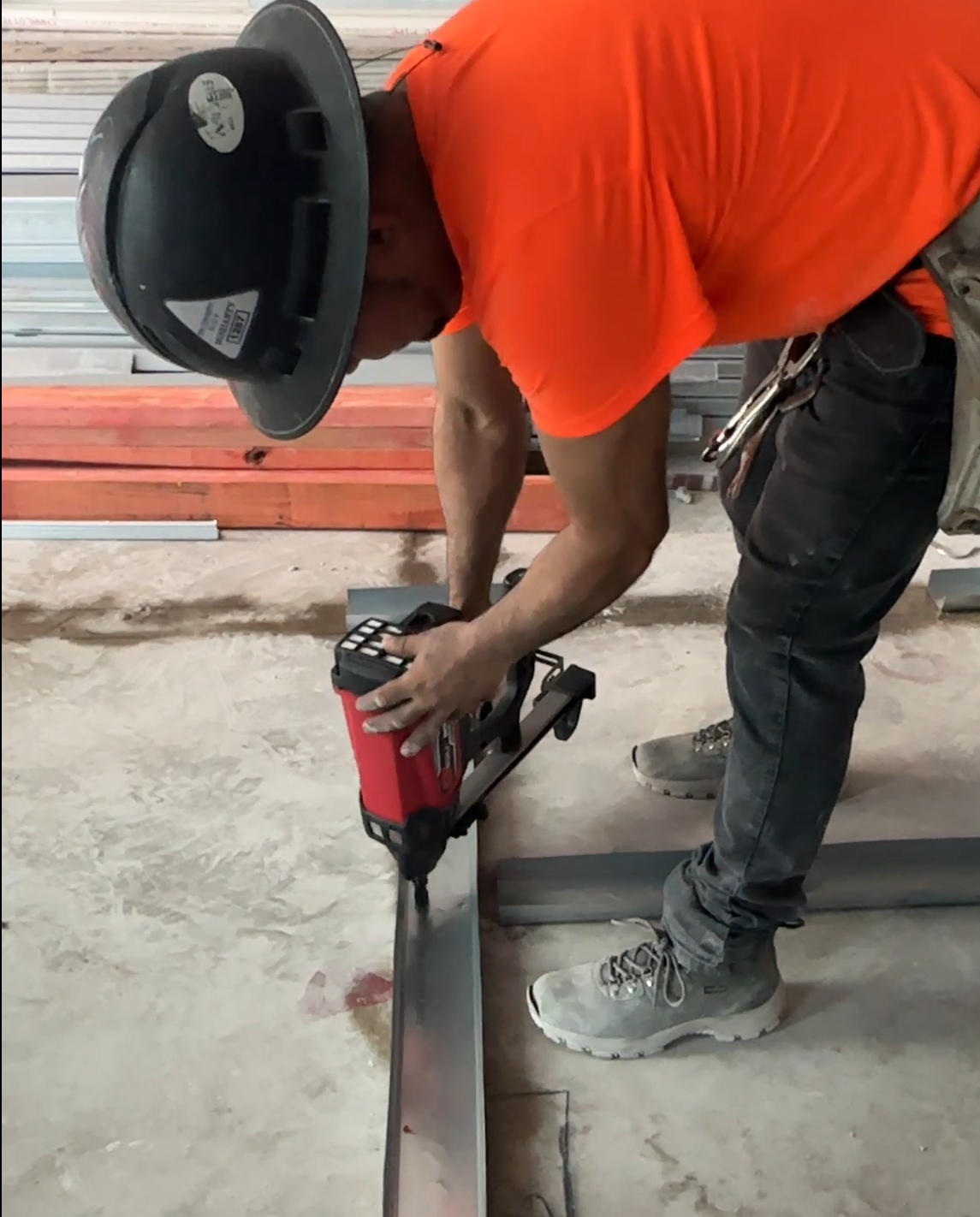

Track to Steel/Concrete

Aerosmith TraxPIN® GT Series power-driven fasteners are power-actuated fasteners used to fasten building components such as light-gage cold-formed steel framing to normalweight concrete, concrete masonry units (CMUs) and structural steel substrate materials. The fasteners are used as alternatives to the cast-in-place concrete anchors described in 2018 and 2015 IBC Section 1901.3 (2012 IBC Section 1908; 2009 IBC Section 1911) for placement in concrete; the embedded anchors described in Section 8.1.3 of TMS 402-13 referenced in Section 2107 of the 2018 and 2015 IBC (Section 2.1.4 of TMS 402-11 and -08, referenced in Section 2107 of the 2012 and 2009 IBC, respectively); and to the welds and bolts used to attach to steel, described in IBC Sections 2204.1 and 2204.2, respectively. For structures regulated under the IRC, the fasteners may also be used where an engineered design is submitted in accordance with IRC Section R301.1.3.

This report, issued by ICC Evaluation Service, Inc. covers the use of Aerosmith pins for: A) Building components to normal-weight concrete, B) Horizontal Diaphragms, and C) Structural Steel Substrates. The fasteners are used as alternatives to cast-in-place anchors described in IBC Sections 1911 and 1912 for placement in concrete and to the welds and bolts used  to attach to steel, described in Sections 2204.1 and 2204.2.  The fasteners may also be used where an engineered design is submitted in accordance with IRC Section R301.1.3.

Aerosmith®’s newest ICC-ESR 4110 report provides you the up to date building code evaluations for our 2193HP track pin. Installation using our ‘high pressure’ systems enables applications into a variety of substrates like high density concrete; concrete block (CMU); or A36 Steel. You’re assured of a faster installation with the best “stick rate” you can find!

This report, issued by ICC Evaluation service Inc cover the use of Aerosmith 3000 series pins to fasten cold-formed steel to normal-weight concrete, sand-lightweight concrete, sand-lightweight concrete filled steel deck panels, concrete masonry units (CMUs) and structural steel substrate materials.
